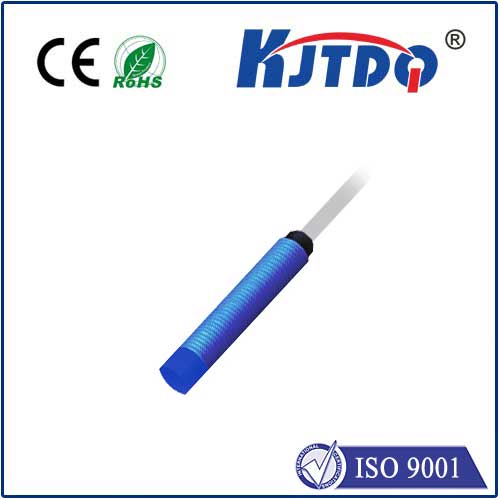

M12 Non-flush Capacitive Proximity Sensors



M12 Non-flush Capacitive Proximity Sensors

M12 non-flush capacitive proximity sensors are another type of proximity sensor used in industrial and automation environments. Here's an overview of their features, applications, and considerations:

Key Features and Specifications

  1. M12 Form Factor: The 'M12' designation refers to the metric thread size of the sensor, which is 12mm in diameter. This size strikes a balance between compactness and adequate sensing distance.

  2. Non-flush Mounting: Non-flush (also known as unshielded) sensors have a longer sensing range compared to flush-mounted sensors. They protrude slightly from the mounting surface, which allows them to detect objects at greater distances.

  3. Capacitive Sensing: These sensors detect changes in capacitance caused by the presence of objects. They can sense both conductive and non-conductive materials, such as metals, plastics, glass, and liquids.

  4. Sensing Distance: Due to the non-flush design, M12 capacitive sensors typically have a longer sensing distance, ranging from around 4mm to 10mm, depending on the specific model.

  5. Output Types: M12 capacitive sensors are available with various output types, such as NPN, PNP, or analog outputs, making them suitable for different control systems.

  6. Operating Voltage: These sensors usually operate within a voltage range of 10-30V DC, ensuring compatibility with most industrial control systems.

  7. Environmental Protection: They often come with high IP ratings (IP65, IP67, or higher) for protection against dust, water, and other environmental factors.


Applications

  1. Material Detection: Identifying the presence of materials on conveyor belts or in bins.
  2. Level Sensing: Monitoring the level of liquids or solids in tanks, hoppers, or silos.
  3. Object Detection: Detecting the presence or absence of parts in assembly lines or machinery.
  4. Positioning: Ensuring components are correctly positioned in automated processes.
  5. Packaging: Verifying the presence and position of items in packaging lines.

product link:https://www.kjt-sensors.com/show-232.html
